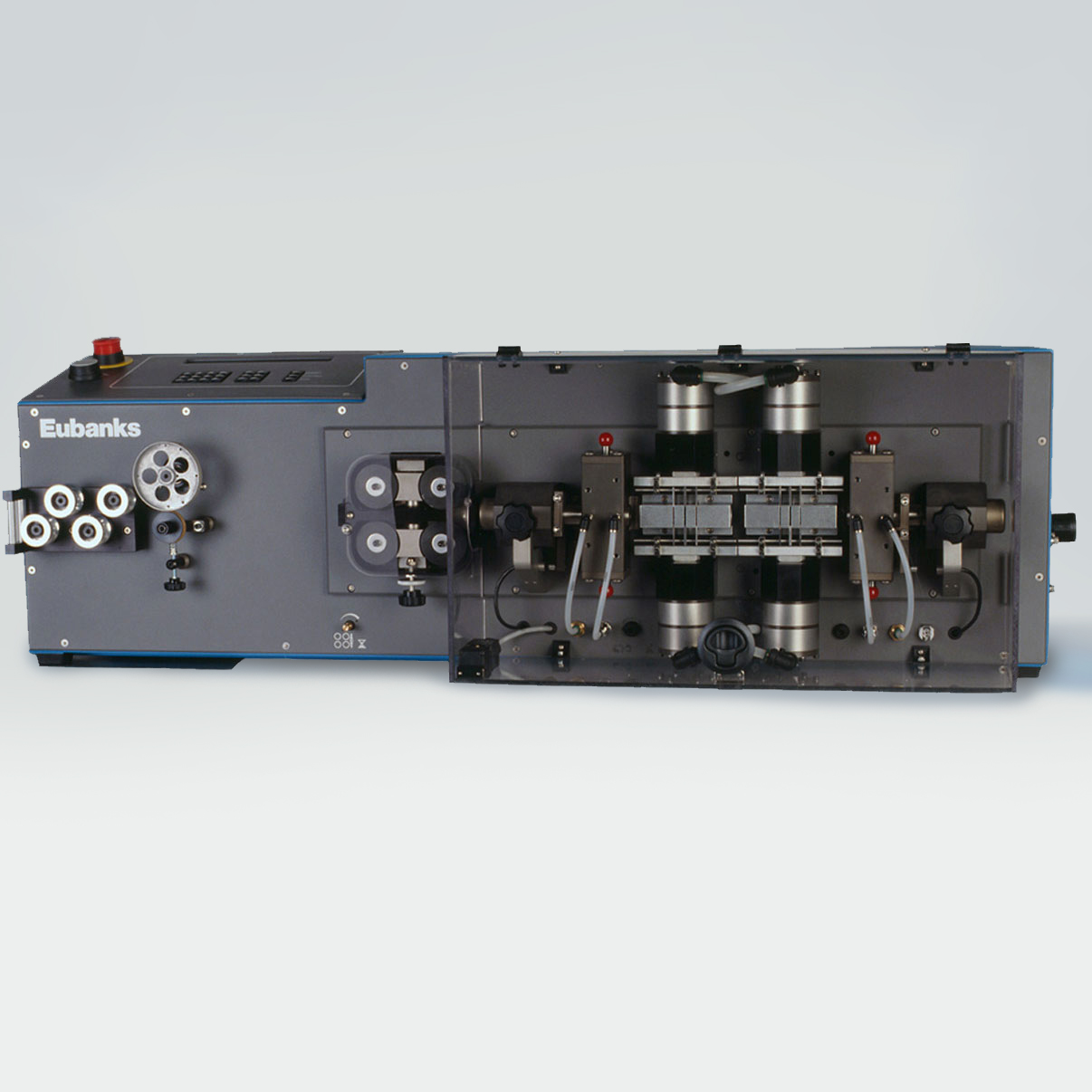

The 4040 is as powerful as the 2940 and is the most flexible of the air strippers. Equipped with very powerful tandem-cutterheads that are controlled independently, allows you to strip up to 100” on the leading end and 4” on the trailing end. The 4040 is ideal for processing power cords and will also process automotive battery cables or welding cable. Equipped with the standard tooling, the 4040 can cut and strip single stranded conduct wires ranging from 10 to 2 AWG, with a maximum O.D. of .480” (12mm). With optional tooling and modification kits, the 4040 can process wires down to 18 AWG (0.96 mm2) and up to 2/0, also known as Two Ott cable with a Max Diameter of .625” (15.9mm). The 4040 can also process a wide variety of cable types such as flat multi-conductor cable, parallel conductor cables with 2, 3 or 4 conductors, coaxial cable. It can process wire lengths from 3 in. to 8,333 feet (76.2mm to 2,540m) basically a mile and a half.
The 4040 cuts and strips both ends of the wire or cable in a single cycle in normal operation mode. When activating the long strip function, the right cutter head will strip up to 100” (254cm) in desired sectional stripping lengths. The left Cutterhead strips the trailing end up to a maximum length of 4” (102mm). The 4040’s production screen can display the estimated pieces per hour being produced at the current feed speed. The production screen also displays an estimated time of completion.
Download the Eubanks Engineering AirStrip 4040 specifications for more detailed information.
New Customers: Click here for information on ordering blades and blocks.
Existing Customers: Click here for information on order blades.
Existing Customers: Click here for information on order blocks.
User Friendly Programming
The 4040 is microprocessor-controlled, highly reliable, and easy to operate. It stores up to 1,000 programs containing separate wire length, batch quantity profiles. The 4040 has built in wire marking controls for pairing with a Eubanks wire marker. From its console, the operator can select and run programs, step the machine through a complete cycle, and switch from single- to multiple-action. It can easily be converted from inch to metric measurements via the machine’s keyboard. It also has self-diagnostics. It also has length correction compensating fields designed to fine tune to the best length tolerance possible.
High-Precision
Our pneumatic strippers use unique hand machined precision die blades and blocks. These setups will last years and deliver the best quality strip available. During the strip function, the blades butt-up against one another cutting perfectly around the circumference of the conductor. During the pull to strip, the insulation is held by perfectly by both top and bottom strip blades giving a perfect linear pull when stripping. The result is a perfect 180° square cut of the insulation without any damage to the conductor.
We design and manufacture all our own blades using our proprietary processes. These processes assure high-precision performance over a long service life. This is where Eubanks clearly excels. We can design special tooling to do cut, strip and slit on parallel wires and offset stripping. Customers have learned to rely on our extensive strip-blade expertise as they adapt to new insulations and tough applications.
